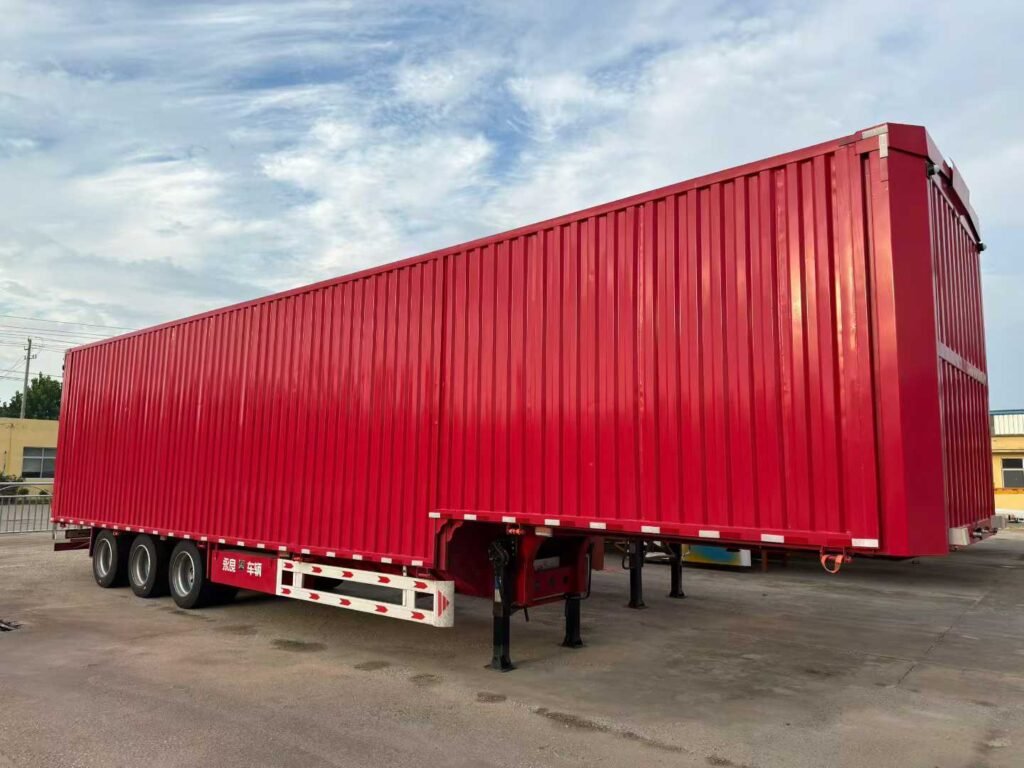

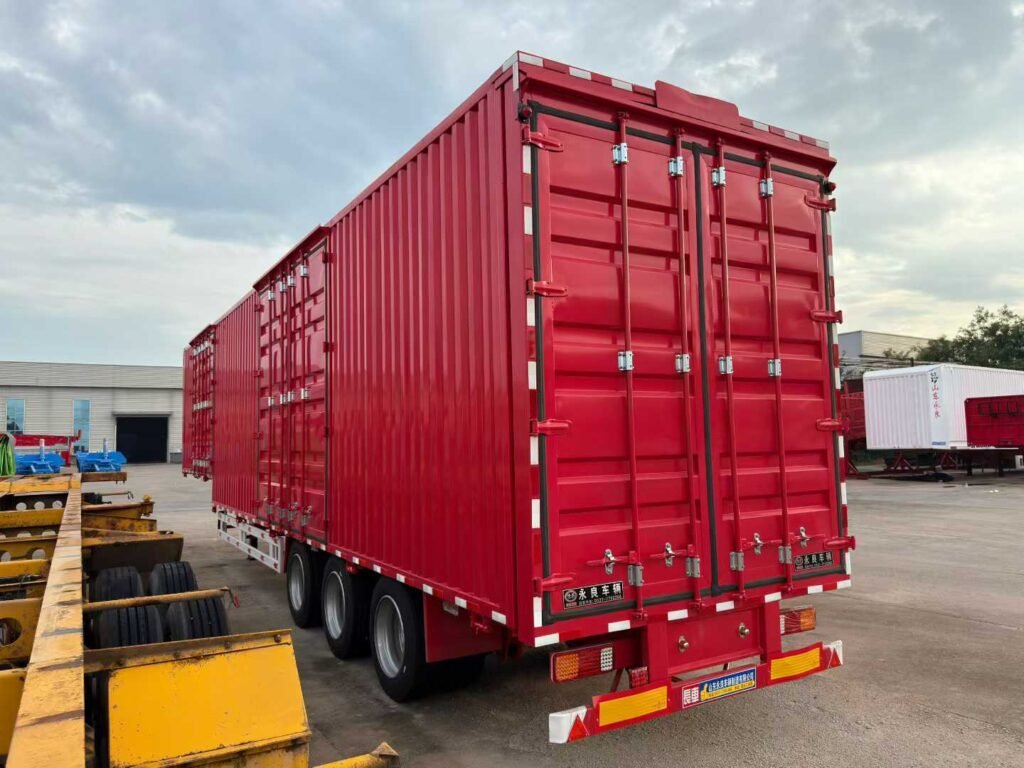

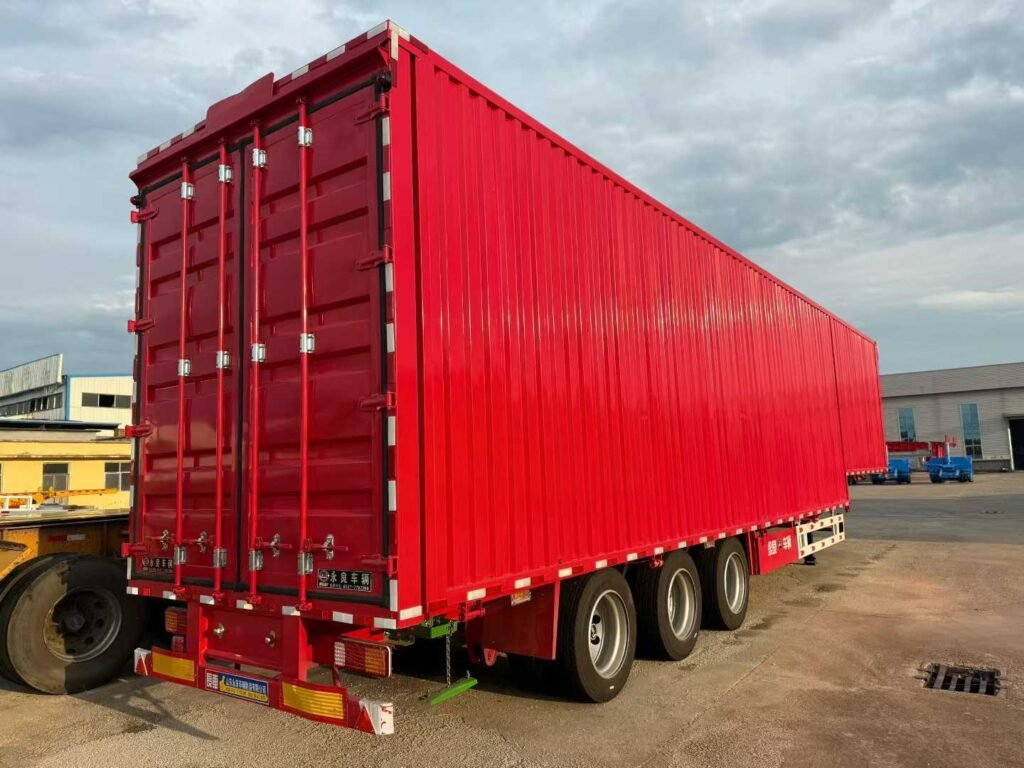

Wing Open Semi Trailer

Leave a reply

Wing open semi trailer is also called wing van semi trailer.

Features:

Length: wing open semi trailer length is customizable from 10 meters to 15 meters. Many customers choose 40 feet.

Height: customizable from 3000 to 4000 mm

Side Board Height: customizable typically from 1800 mm to 3000 mm.

Wing Body: can be carbon steel or aluminum.

Platform: can be straight or drop deck style.

Door: quantity of doors as per your requirement

Refrigerator: we can install refrigerator to make it a reefer trailer.

Wing Open Trailer Specifications

Payload: 50 tons, depends on the number of axles and the loading capacity of the axles

Main Beams: Heavy duty and extra durability designed I beams. Made of high tensile Q345B steel, Top flange 14 mm thick, bottom 16 mm; web height 500 mm, 8 mm thick

Platform: 3mm thick checkered steel

Winches: optional

Kingpin: 50#(2inch) or 90#(3.5inch) bolt-in type

Landing Gear: 28 ton landing gears with two mechanical speeds. Dynamic: 28 tons; Static 80 tons

Axles: 2 to 4 axles, 13 ton / 14 ton / 15 ton / 16 ton / 20 ton axles, the regular configuration is three 13 ton axles and the payload will reach 50 tons

Suspensions: mechanical suspensions or air suspensions

Springs: 10 lines of heavy duty leaf springs

Brake System: Dual air brake system

Rims: 9.00-22.5 or 9.75-22.5, 12 units

Tires: 12.00R22.5, 12 units

Electrical: 24 V Lighting system, 7 pole distribution cable and required hardware for traffic regulations

Twist Locks: Twelve ISO twist locks

Accessories: spare tire carrier + tool box

Painting: Sandblasting, one coat of primer, two coats of finish painting, and color as per customer’s request.

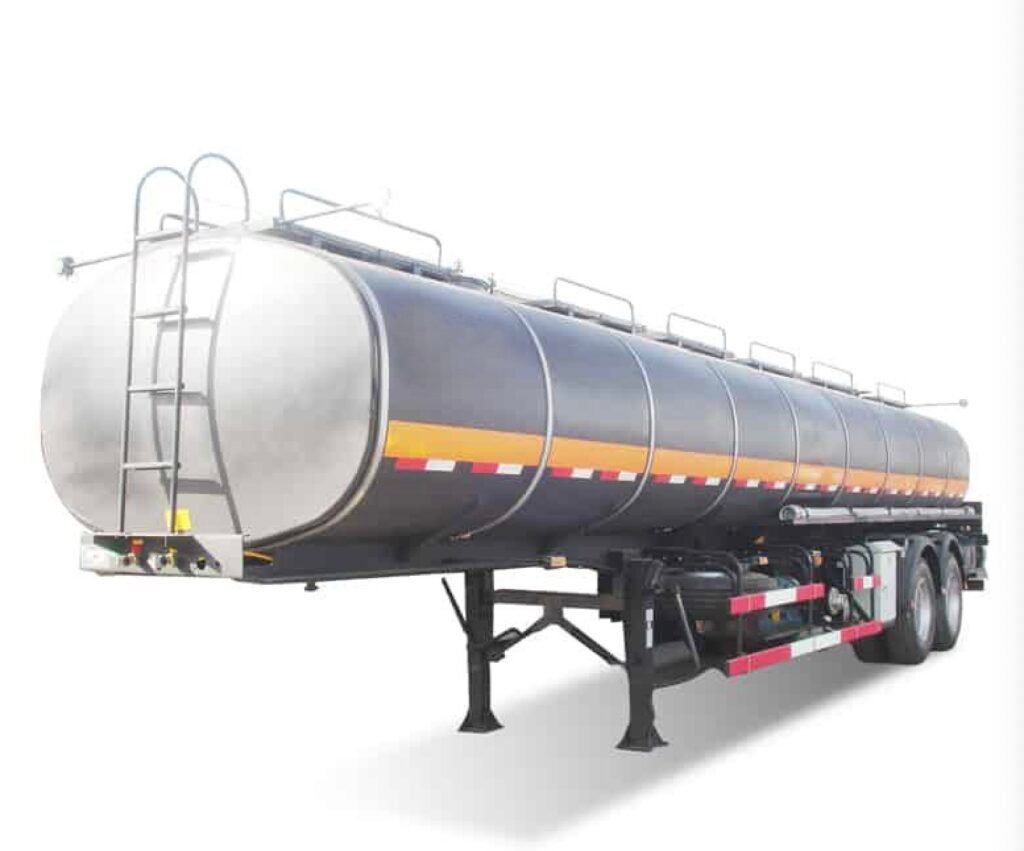

Asphalt Bitumen Tanker Trailer

Leave a reply

Asphalt bitumen tanker trailer is mainly used to transport hot asphalt in large quantities for road paving, repair and expansion projects.

Specifications

Tank Body

Capacity: 38000-42000 liters, according to your requirements

Tank Shape: Round or square

Tank Material: Carbon steel, stainless steel, with insulation layer

Chassis

Landing Legs: 28 ton landing gears with two mechanical speeds. Dynamic: 28 tons; Static 80 tons

Main Beams: Heavy duty and extra durability designed I beam. Made of high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top flange 14 mm thick, bottom 16 mm; web height 500 mm, 8 mm thick

Axles: MAX brand 13 ton axles, 3 – 4 units

Suspensions: Standard mechanical suspensions or air suspensions

Springs: 10 lines of heavy duty leaf springs

Brake System: Dual air brake system

Rims: 9.0-22.5

Tires: 12.00R22.5 tires, 12 units

Electrical: 24 V Lighting system, 7 pole distribution cable and required hardware for traffic regulations

Toolbox: One standard

Spare wheels carriers: Two pieces

Painting: Sandblasting, one coat of primer, two coats of finish painting, and color as per customer’s request.

Sulfuric Acid Tanker Trailer

Leave a reply

Sulfuric acid tanker trailer is mainly used to transport sulfuric acid.

Specifications

Capacity: 19-23 CBM, according to your requirements

Tank Shape: Round

Manhole Cover: Stainless steel manhole cover

Landing Legs: 28 ton landing gears with two mechanical speeds. Dynamic: 28 tons; Static 80 tons

Main Beams: Heavy duty and extra durability designed I beam. Made of high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top flange 14 mm thick, bottom 16 mm; web height 500 mm, 8 mm thick

Axles: MAX brand 13 ton axles, 3 – 4 units

Suspensions: Standard mechanical suspensions or air suspensions

Springs: 10 lines of heavy duty leaf springs

Brake System: Dual air brake system

Rims: 9.0-22.5

Tires: 12.00R22.5 tires, 12 units

Electrical: 24 V Lighting system, 7 pole distribution cable and required hardware for traffic regulations

Toolbox: One standard

Spare wheels carriers: Two pieces

Painting: Sandblasting, one coat of primer, two coats of finish painting, and color as per customer’s request.

Box Semi Trailer

Leave a reply

A box semi trailer is also called a van semi trailer. They are widely used in world logistics industry to transport common goods and general cargo.

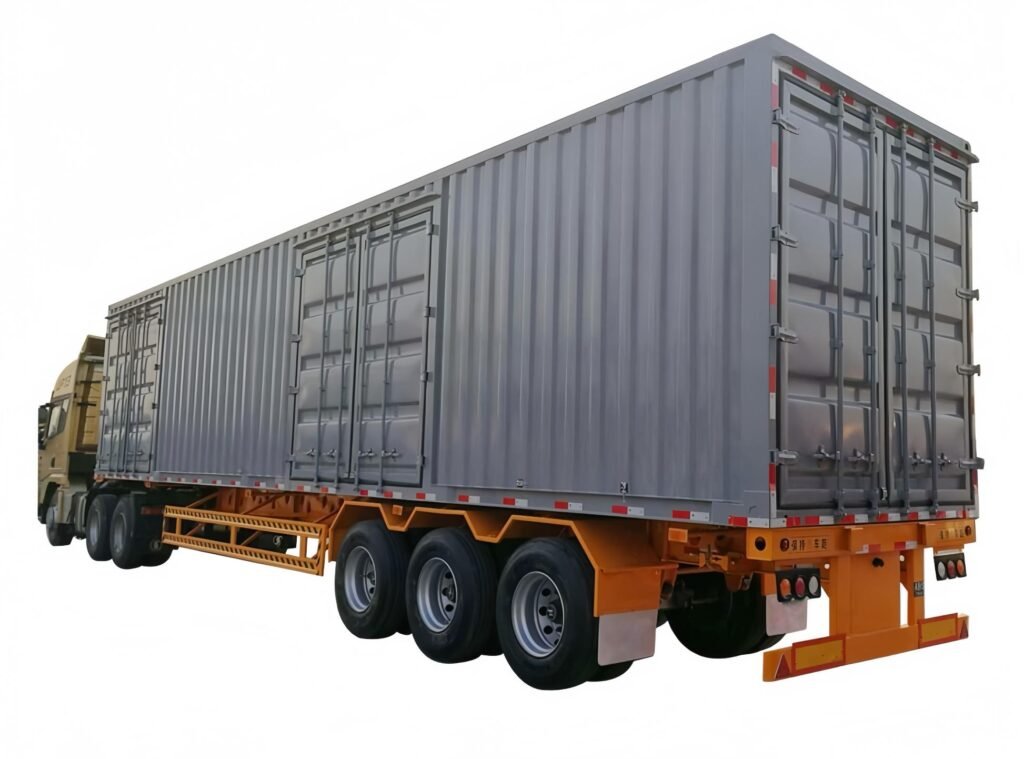

Photo of our Box Semi Trailer

Specifications of Box Semi Trailer

Dimensions(mm): 13000*2500*4000, length and height is customizable. Length can range from 7 meters to 18 meters or as per your requirements.

Doors: The number of doors on the sides and the back is as per your requirements. You can also customize the way the doors are opened.

Payload: 60 tons for three 13 ton axle configuration

Main Beams: Heavy duty and extra durability designed I beams. Made of high tensile Q345B steel, Top flange 14 mm thick, bottom 16 mm; web height 500 mm, 8 mm thick

Side Beams: 18mm steel channel (Material: Q235 steel)

Platform: 3mm thick checkered steel

Winches: installed

Kingpin: 50#(2inch) or 90#(3.5inch) bolt-in type

Landing Gear: 28 ton landing gears with two mechanical speeds. Dynamic: 28 tons; Static 80 tons

Axles: 2 to 5 axles, 13 ton / 14 ton / 15 ton / 16 ton / 20 ton axles, the regular configuration is three 13 ton axles

Suspensions: mechanical suspensions or air suspensions

Springs: 10 lines of heavy duty leaf springs

Brake System: Dual air brake system

Rims: 9.00-22.5 or 9.75-22.5, 12 units

Tires: 12.00R22.5, 12 units

Electrical: 24 V Lighting system, 7 pole distribution cable and required hardware for traffic regulations

Twist Locks: 12 ISO twist locks

Accessories: spare tire carrier + tool box

Painting: Sandblasting, one coat of primer, two coats of finish painting, and color as per customer’s request.

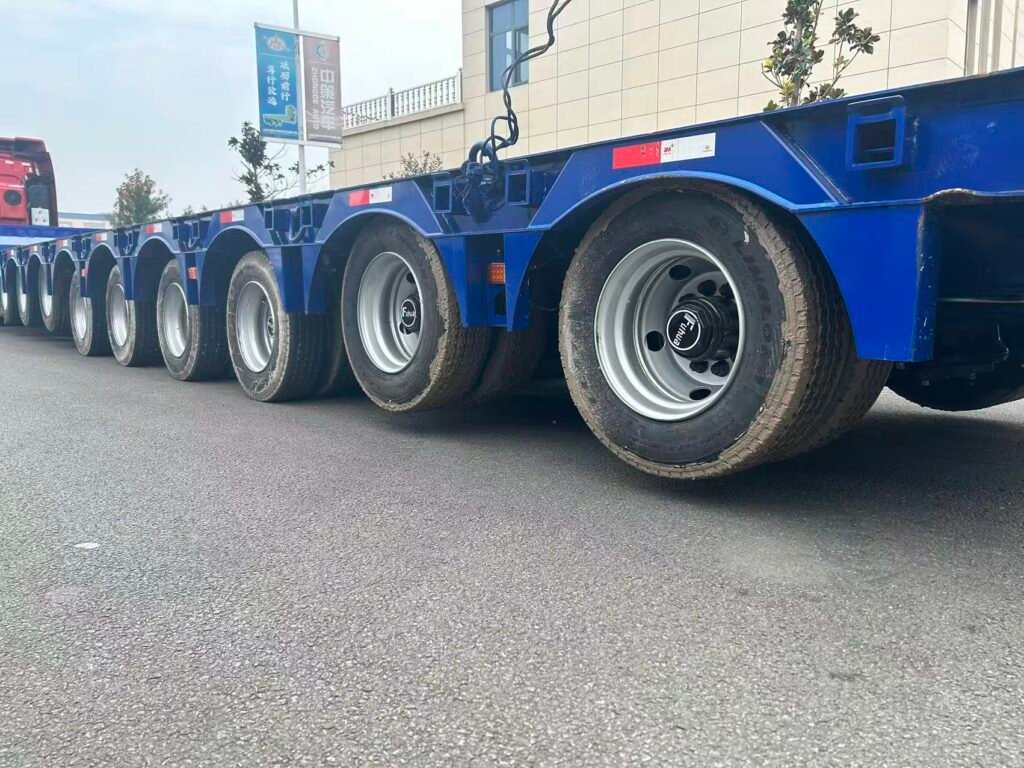

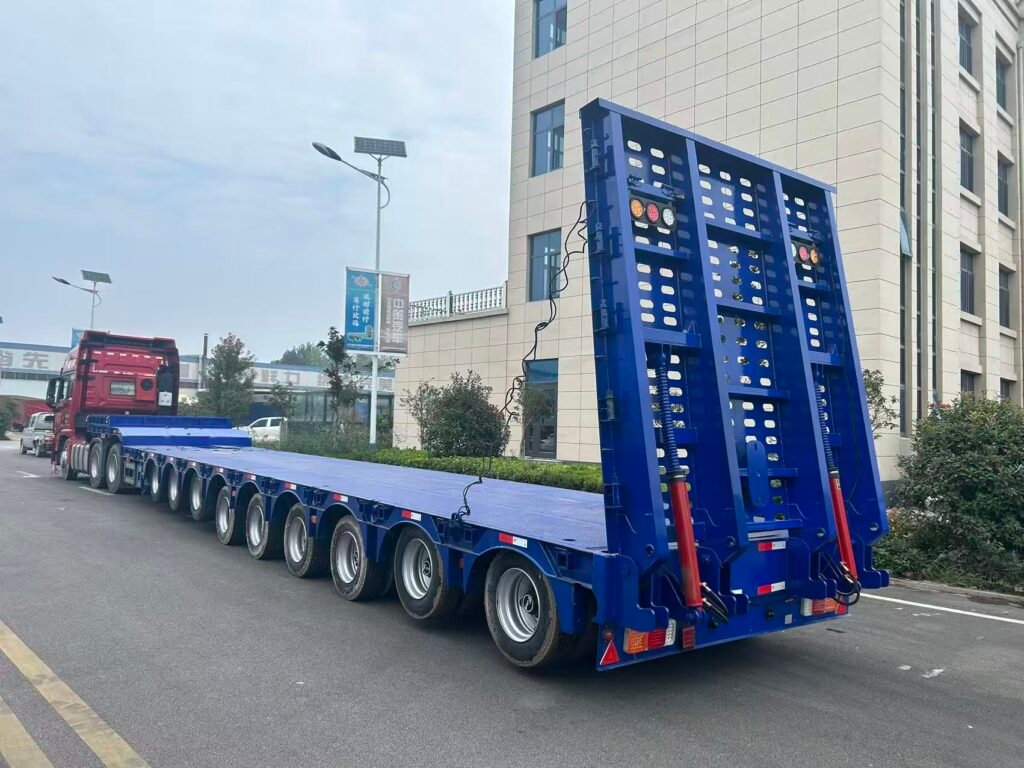

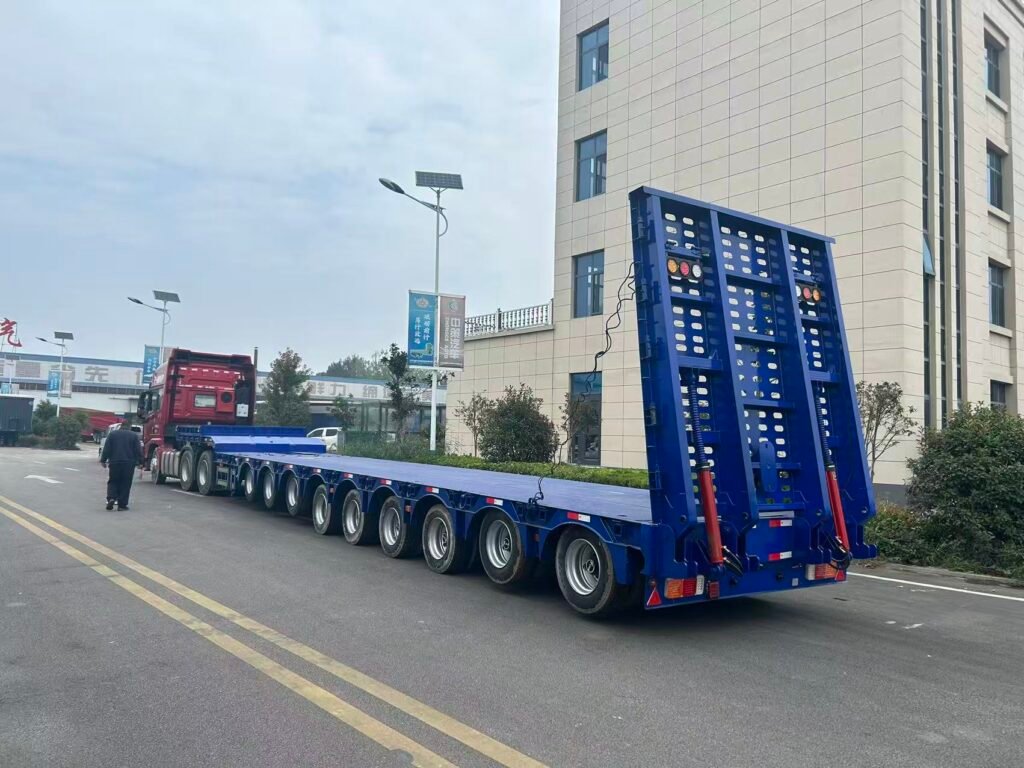

Max Industries: 9-Axle Heavy Low Bed Semi Trailer

Leave a reply

Max Industries is a professional semi trailer manufacturer based in China, with a global export business that serves buyers around the world. Today, we’d like to introduce our heavy low bed semi trailer—a reliable solution designed for transporting ultra-heavy loads.

This low bed semi trailer stands out for its strong performance: it comes with 9 sturdy axles and boasts a 200-ton payload capacity. This means it can easily handle large, heavy items like construction machinery (such as excavators and bulldozers), mining equipment, and oversized industrial parts—tasks that many standard trailers can’t manage.

We build this trailer using high-quality, durable materials to ensure it can withstand rough road conditions and frequent heavy use, keeping its performance stable for years. Every unit is also inspected strictly during production to meet quality standards.

Whether you’re in the construction, mining, or heavy logistics industry, this 9-axle low bed semi trailer is built to fit your needs. As a global exporter, Max Industries ensures smooth delivery and consistent quality for every customer, no matter where you are.
