Wood log semi trailer is also called timber semi trailer. Our wood log semi trailer has three functions.

• The wood log semi trailer has bars around it so it can haul wood logs.
• It has a strong platform, so it can also haul general cargo.
• It has twelve twist locks so it can haul one 40 foot container or two 20 foot containers.

We can also design and manufacture other wood log semi trailers for you, just feel free to contact us!

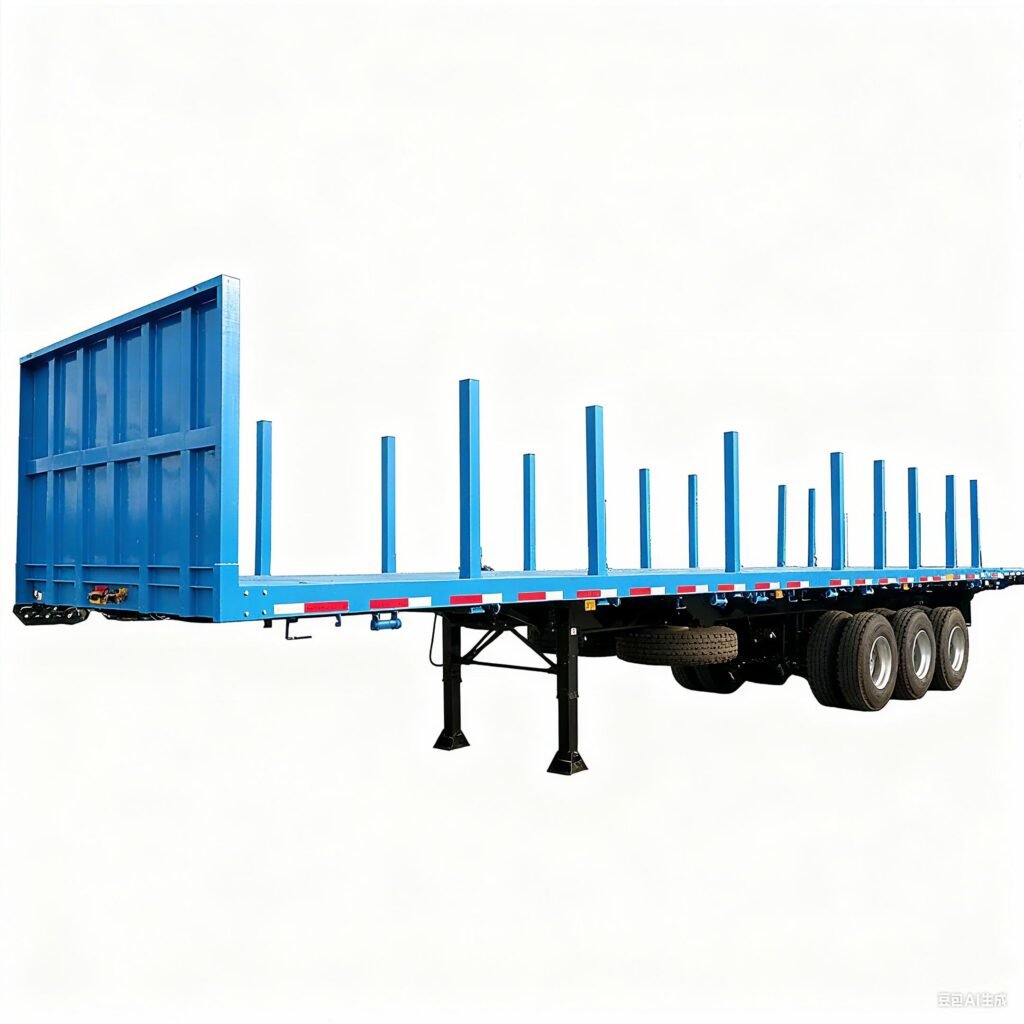

Photo of our wood log Semi Trailer

Specifications

Dimensions(mm): 12500*2500*3280

Payload: 60 tons for three 13 ton axle configuration

Main Beams: Heavy duty and extra durability designed I beams. Made of high tensile Q345B steel, Top flange 14 mm thick, bottom 16 mm; web height 500 mm, 8 mm thick

Platform: 3mm thick checkered steel

Winches: installed

Kingpin: 50#(2inch) or 90#(3.5inch) bolt-in type

Landing Gear: 28 ton landing gears with two mechanical speeds. Dynamic: 28 tons; Static 80 tons

Axles: 2 to 4 axles, 13 ton / 14 ton / 15 ton / 16 ton / 20 ton axles, the regular configuration is three 13 ton axles

Suspensions: mechanical suspensions or air suspensions

Springs: 10 lines of heavy duty leaf springs

Brake System: Dual air brake system

Rims: 9.00-22.5 or 9.75-22.5, 12 units

Tires: 12.00R22.5, 12 units

Electrical: 24 V Lighting system, 7 pole distribution cable and required hardware for traffic regulations

Twist Locks: 12 ISO twist locks

Accessories: spare tire carrier + tool box

Painting: Sandblasting, one coat of primer, two coats of finish painting, and color as per customer’s request.
