Price: 9100 USD

Note: the price above is the FOB price of a three axle 40 foot flatbed semi trailer. If you need a two axle 40 foot flatbed semi trailer, the price is 7900 USD FOB Chinese port.

40 Foot Flatbed Semi Trailer

A flatbed semi trailer is a 40 foot long, flat, open semi trailer. It has two functions. First, with 12 twist locks, It can be used to carry one 40 foot container or two 20 foot containers. Second, It can be used to haul general cargo. 40 foot flatbed semi trailers are among our most popular trailers for international markets.

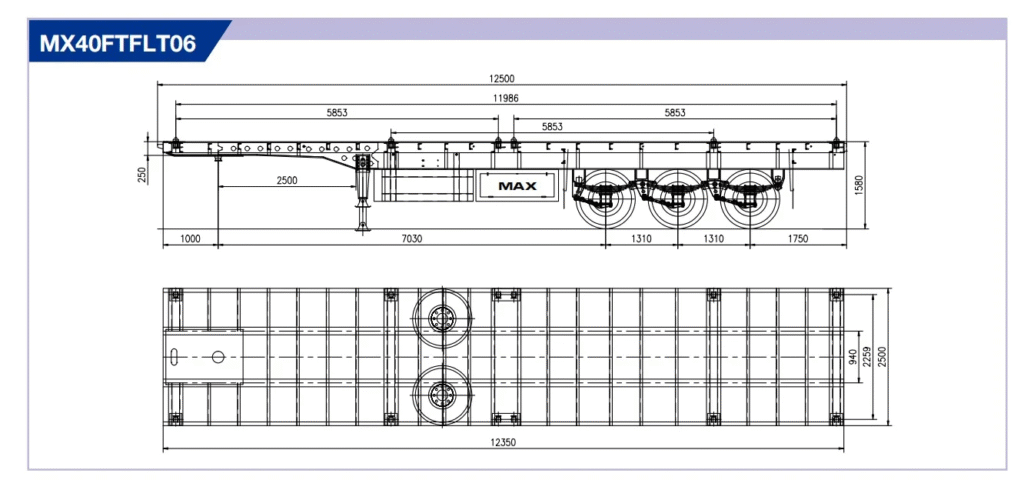

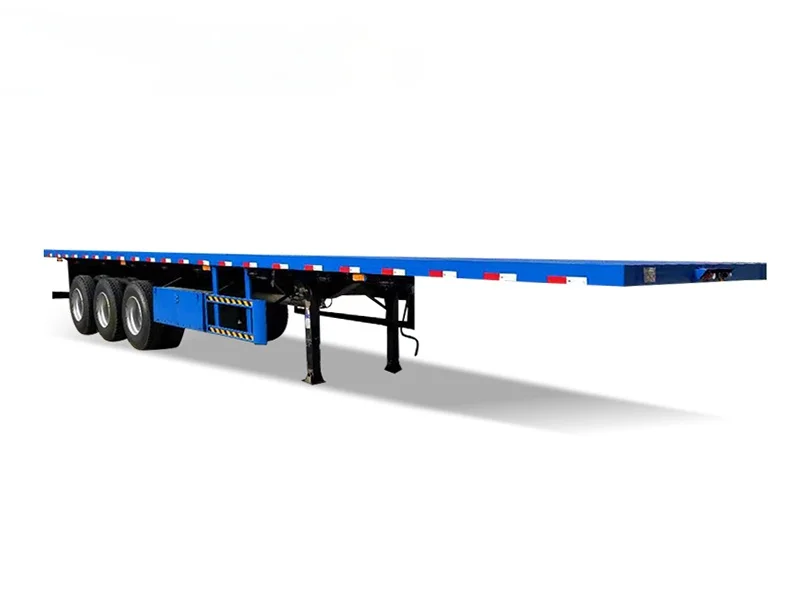

Max Semi Trailer Photo and Drawing

Specifications

Dimensions(mm): 12500*2500*1550

Payload: 50 tons, depends on the number of axles and the loading capacity of the axles

Main Beams: Heavy duty and extra durability designed I beams. Made of high tensile Q345B steel, Top flange 14 mm thick, bottom 16 mm; web height 500 mm, 8 mm thick

Platform: 3mm thick checkered steel

Winches: optional

Kingpin: 50#(2inch) or 90#(3.5inch) bolt-in type

Landing Gear: 28 ton landing gears with two mechanical speeds. Dynamic: 28 tons; Static 80 tons

Axles: 2 to 4 axles, 13 ton / 14 ton / 15 ton / 16 ton / 20 ton axles, the regular configuration is three 13 ton axles and the payload will reach 50 tons

Suspensions: mechanical suspensions or air suspensions

Springs: 10 lines of heavy duty leaf springs

Brake System: Dual air brake system

Rims: 9.00-22.5 or 9.75-22.5, 12 units

Tires: 12.00R22.5, 12 units

Electrical: 24 V Lighting system, 7 pole distribution cable and required hardware for traffic regulations

Twist Locks: Twelve ISO twist locks

Accessories: spare tire carrier + tool box

Painting: Sandblasting, one coat of primer, two coats of finish painting, and color as per customer’s request.
