Side tipper trailer is difference from tipper trailer. A side tipper trailer dump from a side while a tipper trailer dump from the rear. Side tipper semi trailers are primarily used for transporting bulk and loose goods such as coal, ore, sand, gravel, soil grain.

Side tipper Trailer Customization Options

• You can use 3 to 6 axles per trailer and the payload ranges from 40 tons to 100 tons or more.
• You can choose 13 ton / 14 ton / 15 ton / 16 ton / 20 ton axles
• You can choose the shape and style of the trailer body

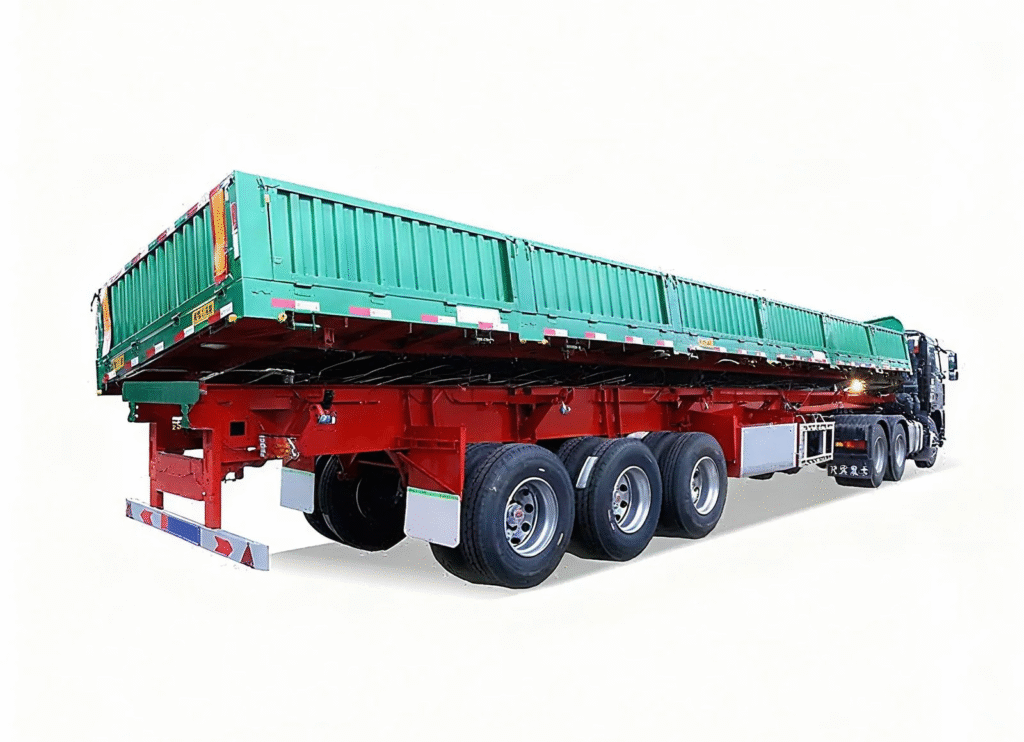

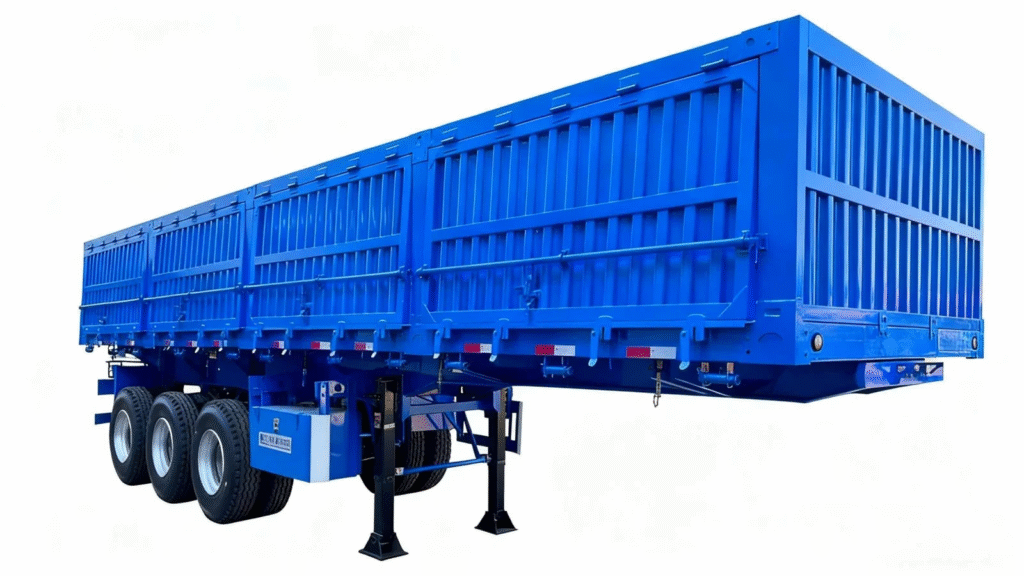

Photos of Our Side Tipper Semi Trailer

Specifications of Side Tipper Semi Trailer

Volume: 35 cubic meters

Dimensions(mm): 8112mm x 2500mm x 3482mm (inside dimension), this dimensions are of a 35 cubic meter side dump trailer. The dimensions are based on the designed volume.

Lifting System: Lifting cylinder 5×130 bore, a shift cylinder

Payload: 60 tons for three 13 ton axle configuration

Main Beams: Heavy duty and extra durability designed I beams. Made of high tensile Q345B steel, Top flange 14 mm thick, bottom 16 mm; web height 500 mm, 8 mm thick

Kingpin: 50#(2inch) or 90#(3.5inch) bolt-in type

Landing Gear: 28 ton landing gears with two mechanical speeds. Dynamic: 28 tons; Static 80 tons

Axles: 2 to 6 axles, 13 ton / 14 ton / 15 ton / 16 ton / 20 ton axles, common configuration is three 13 ton axles

Suspensions: mechanical suspensions or air suspensions

Springs: 10 lines of heavy duty leaf springs

Brake System: Dual air brake system

Rims: 9.00-22.5 or 9.75-22.5, 12 units

Tires: 12.00R22.5, 12 units

Electrical: 24 V Lighting system, 7 pole distribution cable and required hardware for traffic regulations

Accessories: spare tire carrier + tool side tipper

Painting: Sandblasting, one coat of primer, two coats of finish painting, and color as per customer’s request.
